Phoenix DCB97

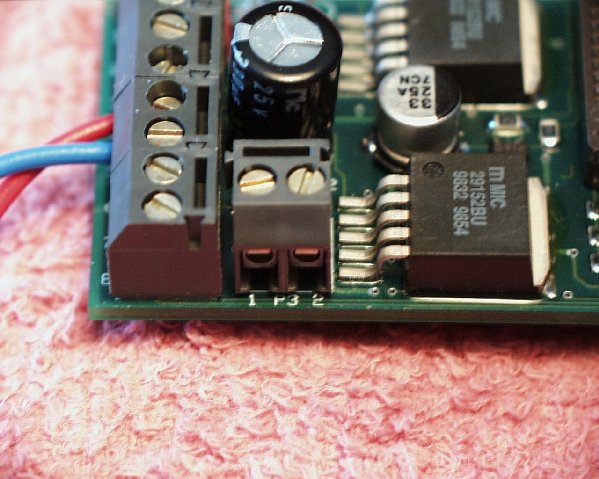

P3 TERMINAL STRIP (Speaker)

Pin #

Connection Description

1

Speaker Lead - non polar, connect either speaker wire

2

Speaker Lead - non polar, connect either speaker wire

*Note

The system's speaker impedance must be 8 Ohms in order for the systems amplifier to function properly. The use of single, 8-ohm speaker is the general rule. If multiple speakers are to be used then their final overall impedance, again must be 8 Ohms.

RETURN


P3 TERMINAL STRIP (Speaker)
Pin #	Connection Description
1	Speaker Lead - non polar, connect either speaker wire
2	Speaker Lead - non polar, connect either speaker wire
*Note	The system's speaker impedance must be 8 Ohms in order for the systems amplifier to function properly. The use of single, 8-ohm speaker is the general rule. If multiple speakers are to be used then their final overall impedance, again must be 8 Ohms.
